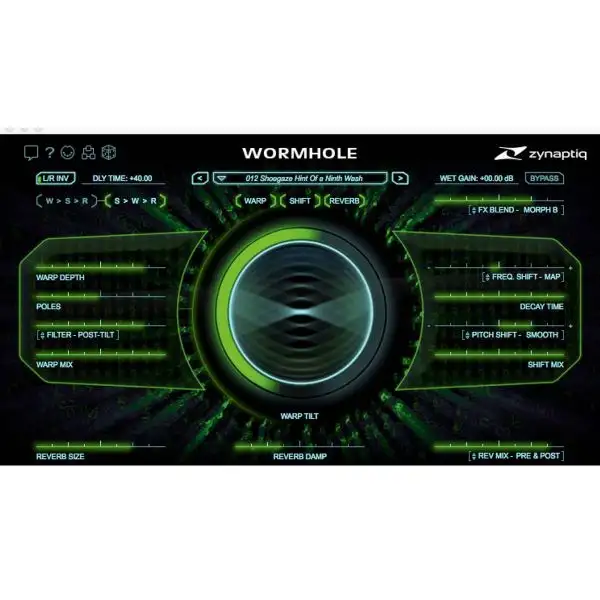

Top 10 ❤️ Zynaptiq Wormhole – Electronic Delivery 🤩

Otherworldy Audio Effects

From beautifully shimmering detuned guitar widening and glassy ambient octave-shift tails, to surreal ambiences, starship drones, alien, monster, and robot voices — Zynaptiq WORMHOLE is the new indispensable multi-effects powerhouse for sound designers, music producers and film composers alike. Combining ultra-clean pitch/frequency shifting, eccentric spectral warping, dual lush reverbs, and unique dry/wet morphing, WORMHOLE delivers sounds so unearthly you’ll swear they’re from a parallel universe.

Features:

• High-quality multi-effects processing ranging from the sublime to the extreme
• WARP spectral inversion & warping module
• SHIFT unique topology combined pitch-/frequency-shifting module with SMOOTH, TIGHT and two DETUNE modes
• Dual lush randomized hall reverbs
• Unique dry/wet morphing
• Very wide ±4 octaves pitch-shift and ±4000 Hz frequency shift range, fully aliasing free, with 96 dB/oct carrier and side-band attenuation

Dry-Wet Morphing, a.k.a. FX BLEND

When strongly processing sounds, a simple dry/wet crossfade often fails to do what you really want to achieve – dialing back the intensity of the effect. Instead, you’ll get the impression of two sounds playing at once. This is why where other plugins have a dry-wet control, WORMHOLE has FX BLEND. The FX BLEND module expands on the dry-wet concept by providing multiple algorithms for combining the two streams. In addition to the classic d/w crossfade, it features two implementations of the unique structural audio morphing technology to morph seamlessly between your input and the effect. This fuses the two – turning them into one single sound in-between – and can “wrap” the effect signal into the “silhouette” of the source for greater definition aka “tightness” than you typically get from heavy processing. The dry-wet morphing also allows for much greater “realism” on heavily processed sounds such as monster voices, for myriad hybrid sounds to be explored, and for creating super-smooth transitions where the effect harmonics “grow out of the source” in a way you’ve never heard before.

WARP

WARP performs a unique localized time-domain spectral warping effect, whose flavor lies somewhere between ring- and frequency-modulation, frequency- and formant-shifting, modal resonation, and spectral mapping. WARP sounds mesmerizingly strange and always stays crisp, intelligible, and tight (unless you don’t want that, of course). It even includes a mode that introduces discontinuity artifacts to generate grit for all sorts of space-age special effects.

SHIFT

SHIFT combines ±4 octaves of pitch-shift with ±4 kHz of frequency-shift into one single processing step.
The PITCH SHIFTER is a unique design that is neither delay/grain nor FFT/phase-vocoder based. As a result, it exhibits none of the typical artifacts like grains, flamming, or aliasing, and is very low on pitch-jumping or warbling. It features 4 dedicated algorithm modes: SMOOTH, TIGHT, DETUNE A, and DETUNE B. SMOOTH and TIGHT do exactly what their names imply – shifting up or down by up to 48 semitones. The DETUNE modes shift the left and right channels in opposite directions by ±48 cents for that micro-shifting-chorus-that-is-no-chorus thickening effect. WORMHOLE’s PITCH SHIFTER sounds incredibly detailed, organic, and warm.

WORMHOLE’s FREQUENCY SHIFTER is extremely clean, sporting around 96dB of carrier/side-band suppression, greatly enhancing the useful range of effects achievable. Like the PITCH SHIFTER, the FREQUENCY SHIFTER is fully aliasing-free.
The SHIFT section also features a unique DECAY TIME control. By discarding signal components that exceed an adjustable duration, it declutters and tightens up the sound in a very cool way. And, when shifting up, it greatly reduces the “ringing” effect caused by the naturally longer decay times of low frequencies being shifted into the subjectively louder mid-range. It can also be used for special effects like simulating analog communications circuit “sagging”, or adding timbral “fluttering”.

REVERB

What’s better than a great reverb? Exactly, TWO great reverbs, of course. That’s why WORMHOLE’s REVERB section features two simple but super-lush sounding random modulated hall type reverbs with shared controls. One is placed before the FX BLEND – giving effects that aren’t quite your typical reverb when used with the dry-wet morphing. The other is placed after the FX BLEND. For maximum reverberation flexibility, you can use either one, or both at the same time.

DELAY

Living in the slot where other plugins have a pre-delay, WORMHOLE’s very simple but highly effective DELAY represents an evolution of this concept. In addition to delaying the effect signal, it can delay the dry signal instead…or do both, in opposing directions for the L and R channels. This creates super-wide effects that are still fully balanced around the center of the sound stage. Within seconds. In combination with the pitch shifter’s DETUNE modes and the dry-wet morphing (where the DELAY effectively modifies what gets morphed into what), unique sounds ranging from subliminal enhancement to the off-the-hook variety can be created.

Ring Modulation

When an audio signal passes through a ring modulator, two so-called “side bands” are generated. These are copies of the input signal, linearly shifted in frequency by the frequency of the modulating oscillator symmetrically in both directions. Here, Zynaptiq used a ring modulator modulator frequency of around 300 Hz, using a sine wave sweeping linearly from 160 Hz to 2900 Hz over a duration of around 2.3 seconds as input (first image). You can clearly see the two side bands in the second illustration (green lines, the red line shows the input signal and is overlaid for illustrational purposes only). As the two side bands are shifted linearly in frequency and harmonics in natural sounds are logarithmically distributed, a “metallic” or “hollow” unnatural sound is created – which can be used to great effect for processing voice.

Frequency Shifting

A frequency shifter is essentially a ring modulator where one of the two side bands is suppressed, so that the signal is shifted in one direction only. This makes for an effect that takes up much less space in a mix than what you’d get with ring modulation. In practice, the amount of side-band and carrier suppression achieved varies between designs, in most cases it remains audible. This can be seen in the spectrogram below, where Zynaptiq used a well-known plug-in to shift frequency up by the same approximate 300 Hz as in the ring modulator example above – the lower sideband is somewhat attenuated but still there.

Sufficient side-band suppression is, however, critical to achieving high quality frequency shifting and, more importantly, consistently useful results when shifting strongly. With signals that are of higher complexity than a sine-wave, this becomes even more true. Here, Zynaptiq have passed two swept sine-waves through the same well-known 3rd party frequency shifter, shifting down by 500 Hz. As you can see in the second image, the upper side-band is insufficiently suppressed, yielding a rather unclean result. Also note the lower of the two sine-waves appearing inadvertently at the beginning of the sweep, this is due to the signal being shifted to below zero Hz and being “reflected” back up, a.k.a. aliasing. Both artifacts are displayed in orange for visibility.

With three swept sines – which is still a very simple signal compared to, for example, a voice – the problem gets worse. The below spectrograms show three swept sines, as well as the same three sines shifted by +2000 Hz using the same 3rd party algorithm.

Frequency Shifter

In comparison, WORMHOLE’s frequency shifter is free of any aliasing, and has near-perfect side-band suppression, as evidenced by the spectrograms below – note the complete absence of the unwanted sidebands. Basically, the attenuation of the side-bands is so high that they fall outside of the spectrogram’s displayed dynamics range. Audio-wise, this translates into a significantly cleaner sound and a much broader range of useful settings.

WARP

WORMHOLE’s WARP module behaves somewhat differently. The spectrograms below show the same sine sweep processed with a WARP DEPTH setting of 25%, 50%, 75% and 100%. Note how the structure of the output signal is noticeably more complex than with simple ring modulation or frequency shifting, while at the same time being much more “tidy” and sporting a more balanced distribution. The output is also free of any aliasing. Also note how the output components converge around the input signal with rising values for warp, resulting in a very defined, yet strongly processed sounding sound.

By raising the POLES parameter, this convergence around the original signal’s coordinates can be further increased, while at the same time introducing a series of resonance points, which tend to enforce the perception of a specific pitch, and which have sonic characteristics similar to a modal resonator, but with much less time-smearing. The below images illustrate this effect.

System Requirements Mac:

• Apple Mac computer
• OSX 10.8.x or newer
• Intel CPU with at least 2 Cores
• Apple AU (AudioUnits), Steinberg VST 2.4, Steinberg VST 3 or Avid RTAS/AAX compatible Host software
• For AAX Native 32-bit, the minimum required Pro Tools version is 10.3.6
• iLok.com account for machine- or iLok 2 based activation (of full as well as demo versions)
• Internet Connection for Software Activation (though not necessarily on the computer used for audio)

System Requirements Windows

• Windows 7 or newer
• CPU with at least 2 Cores
• Steinberg VST 2.4, Steinberg VST 3 or Avid RTAS/AAX compatible Host software
• For AAX Native 32-bit, the minimum required Pro Tools version is 10.3.6
• iLok.com account for machine- or iLok 2 based activation (of full as well as demo versions)
• Internet Connection for Software Activation (though not necessarily on the computer used for audio)
